Techonology
Techonology
Cloud Platform Simulation Testing Perception Map Localization
Cloud Platform

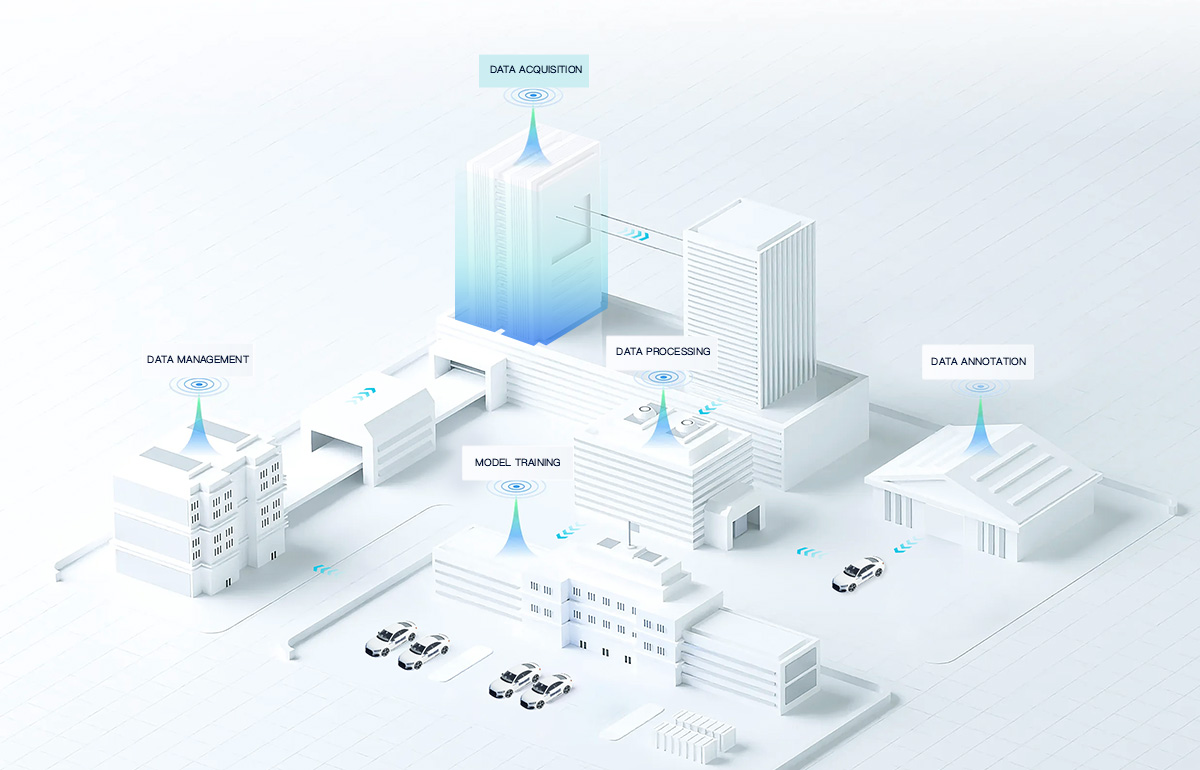

Data Acquisition
Data Acquisition

Cloud-based vehicle data collection task deployment

Data Acquisition

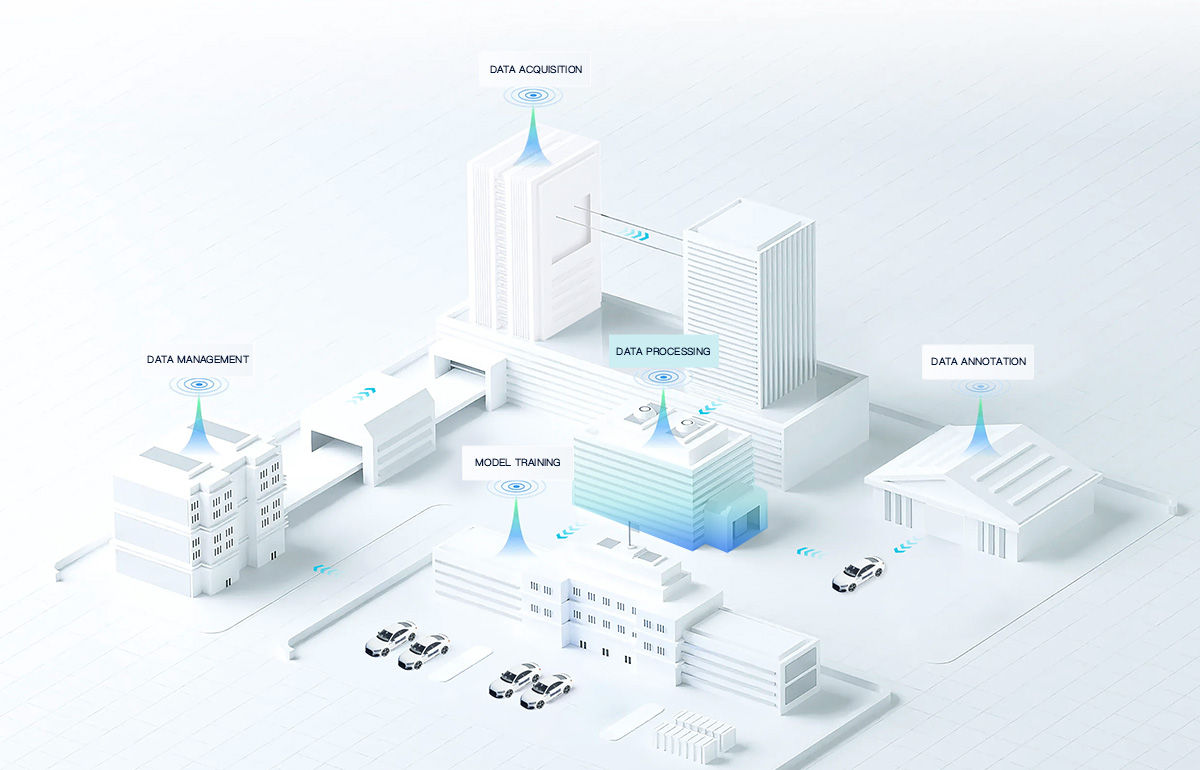

Data Processing
Data Processing

Extracting data slices based on diverse requirements post-collection

Data Processing

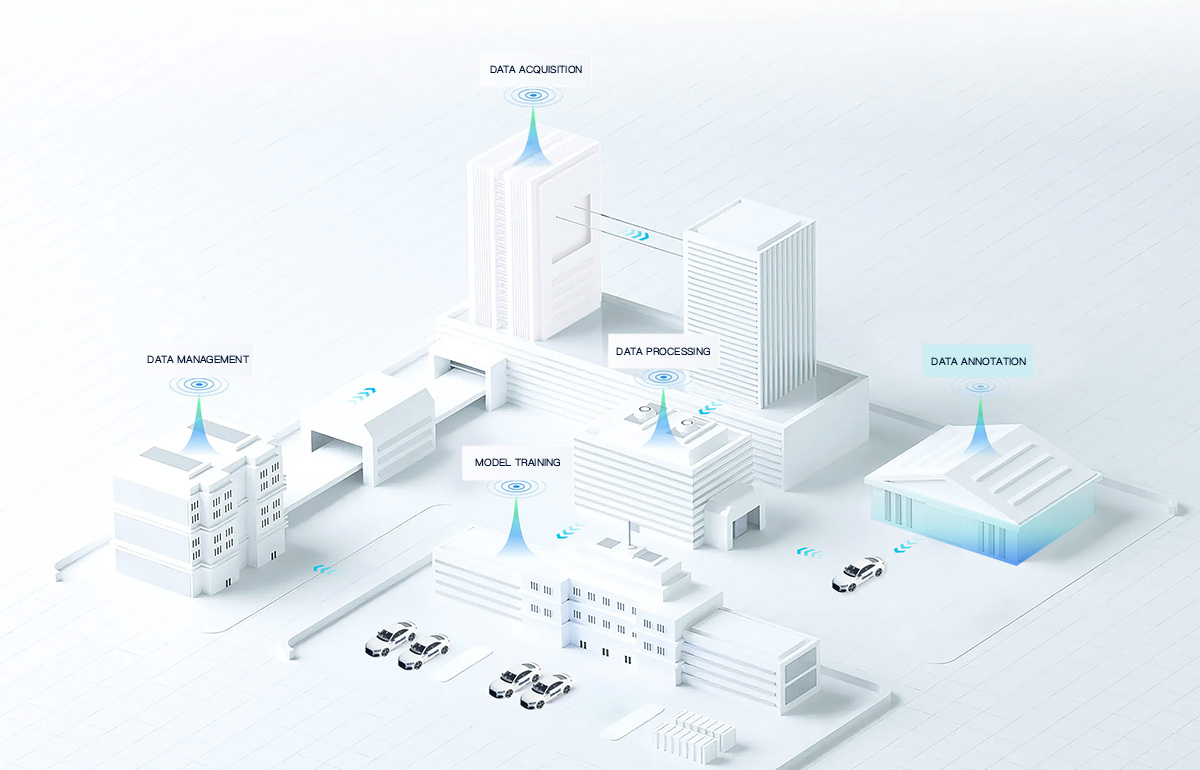

Data Annotation
Data Annotation

Online dataset filtering and curation

Data Annotation

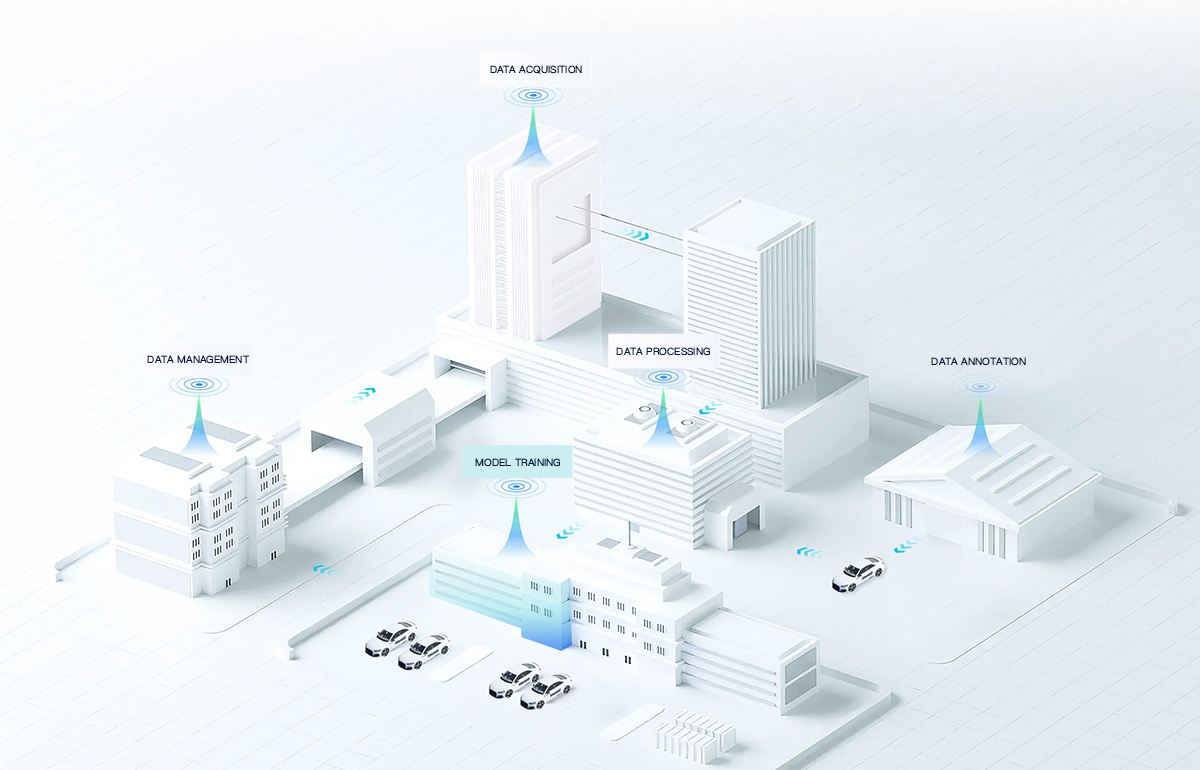

Model Training
Model Training

Cloud-based algorithm model training

Model Training

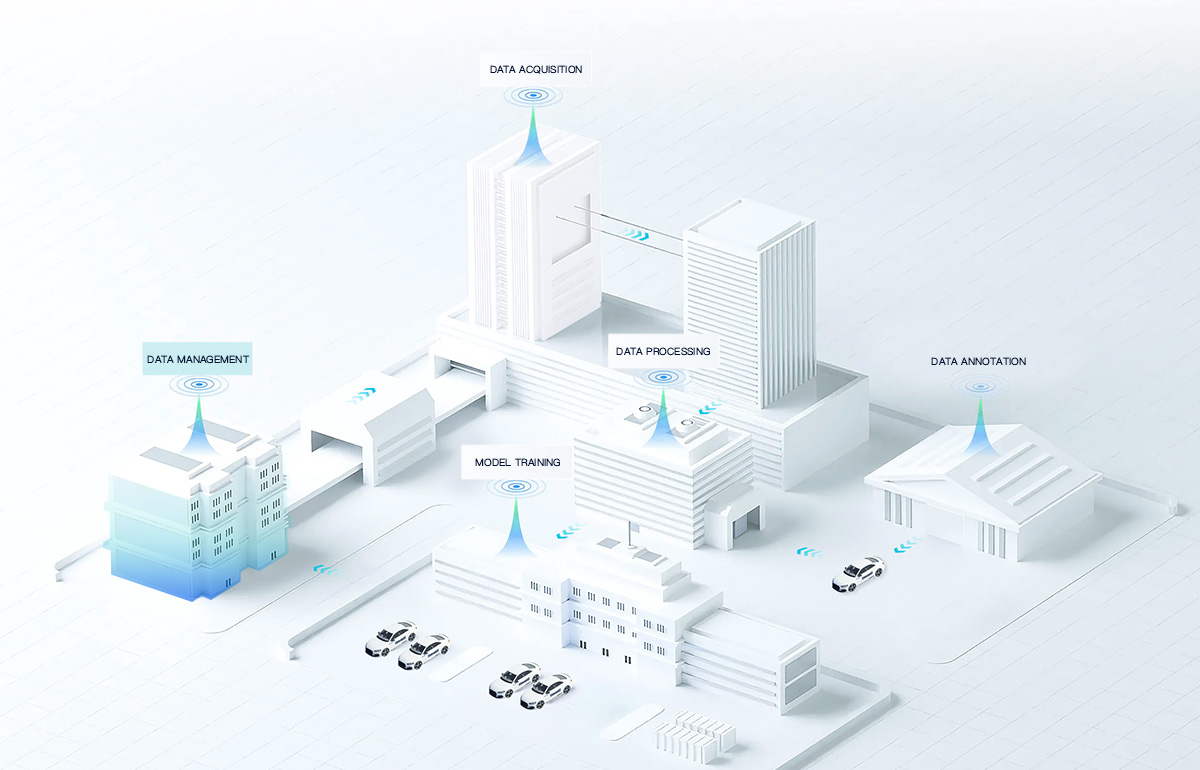

Data Management
Data Management

Multi‑mode data management:Perception algorithm acquisition data
Long‑distance test mileage data、Test database (DB) data

Data Management

Data Acquisition

Data Processing

Data Annotation

Model Training

Data Management

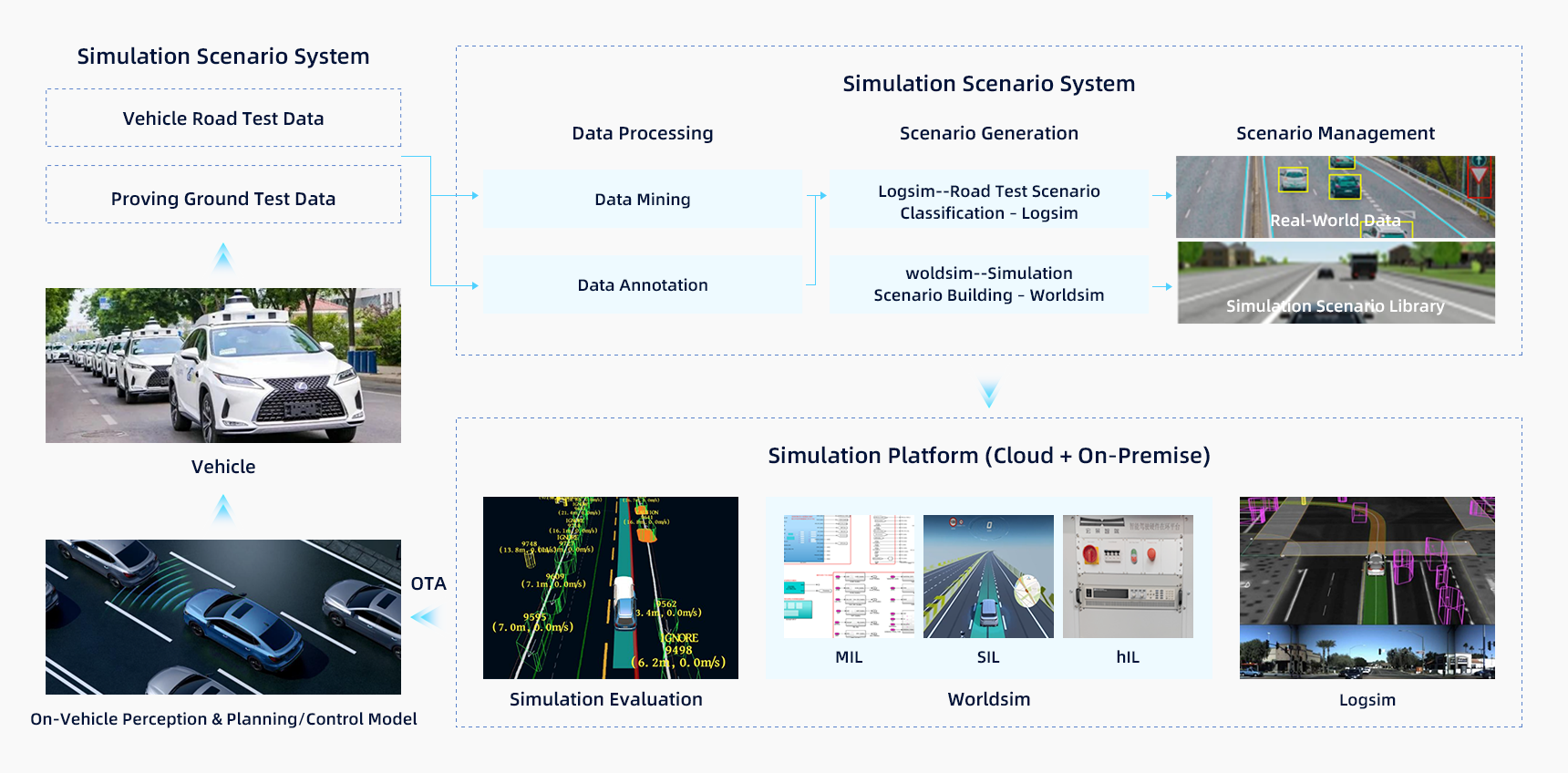

Simulation & Test
SIL – Software-in-the-Loop
SIL – Software-in-the-Loop
Covers 80% of ADAS longitudinal/lateral control and warning scenarios
Cloud batch automation
HIL (Hardware-in-the-Loop)
HIL (Hardware-in-the-Loop)
Covers 80% of ADAS longitudinal/lateral control and warning scenarios
Automated log analysis
Logsim (Data Replay)
Logsim (Data Replay)
100,000 km/week regression testing
Automated Replay Analysis
95%+ replay accuracy
Perception

Front View

Surround View

Tri-Net Fusion BEV Perception Algorithm

Dynamic Objects
Maximum stable perception distance: 150m
Position accuracy: 5% error within 100m longitudinally
Supports ACC, FCW, AEB and more
Lane Lines
Maximum stable perception distance: 120m
Lateral accuracy: <10cm within 50m
Supports LDW, LKA, LCA and more

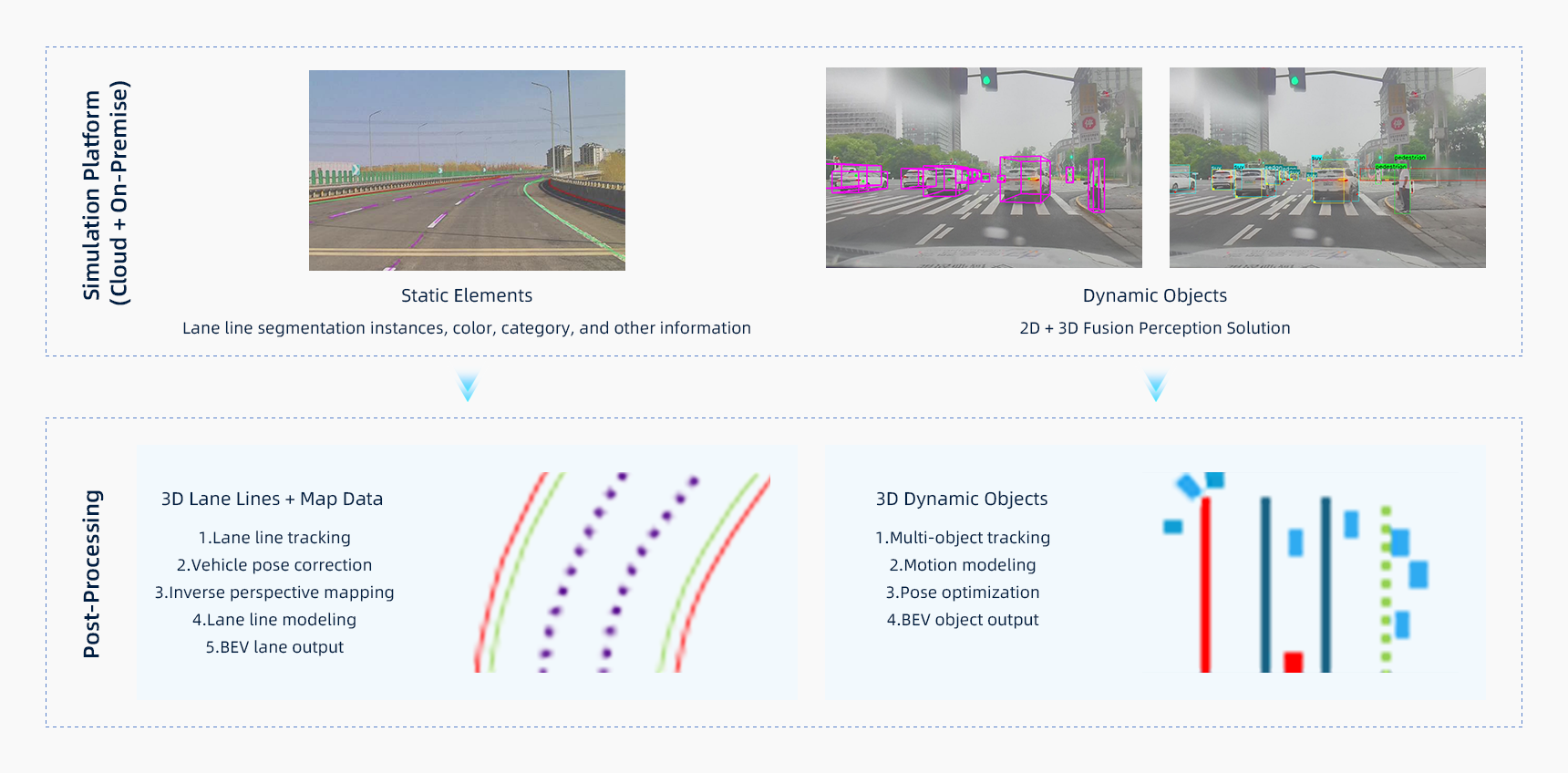

Front View
Front View
Dynamic Obstacles
Maximum detection range: 20m
Position accuracy:
Vehicle average error: <8%
Pedestrian average error: <5%
Static Obstacles
Maximum detection range: 12m
Position accuracy:
Within 2m: 5–10cm
2–5m: <5%
Beyond 5m: <10%
Parking Slot Corners
Accuracy when camera and slot are on the same plane:
Within2.5m: up to5 cm
Within 5 m: up to 10 cm

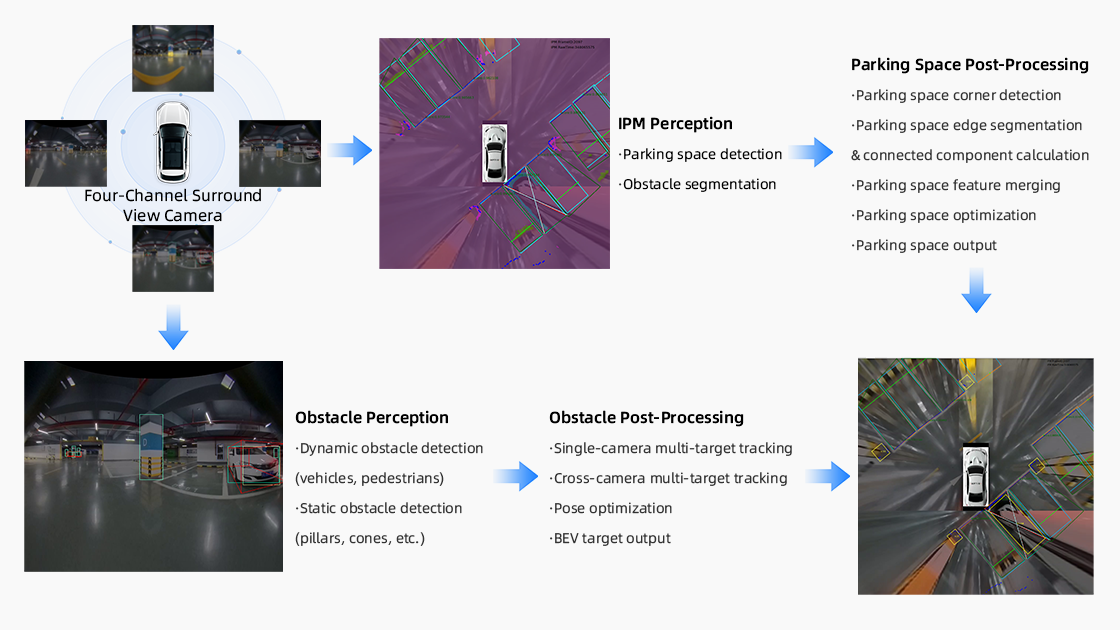

Surround View
Surround View
Sensor Platformization
Supports various sensor inputs including front view, rear view, surround view, fisheye, LiDAR, 4D Radar, and more.
Data Closed-Loop System
A closed-loop ground truth system based on Hyper-GTMax, supporting scenario mining, auto-labeling, and perception KPI evaluation.
Perception Task Platformization
Unified modular output supporting object detection, map detection, occupancy, HD-map-free solutions, and general obstacle detection capabilities.
Software & Algorithm Platformization
Proprietary deployment pipeline and toolchain enabling fast adaptation to Ambarella CV3/CV72, NVIDIA Orin, Horizon J5, and other mainstream platforms
Tri-Net Fusion BEV Perception Algorithm
Tri-Net Fusion BEV Perception Algorithm
Map Localization
Mapping phase: Creates map using sensor and positioning data
Generates reference route for trajectory tracking
Real-time localization matching with memorized route upon parking start
Cruising phase: Retrieves pre-built map and reference line from backend
Provides continuous real-time positioning information
Map Localization
